What is the proper vinyl sheet pile driving method for different soil types?

“Pitch and drive” method is the most practical way of pile driving in loose soils especially when using short piles. Also called “set and drive”, this method installs piles one by one. However, with only one interlock in control, sheet piles have high tendencies of rotating from the axis and leaning forward or backward. Panel driving is recommended for the dense deposit of sands and compact cohesive soils such as heavy clay or in presence of obstructions. In this method, a number of piles are interlocked together before driving. The panel of piles is supported by guide frames and driven gradually in sequence, sometimes in a staggered manner. The method can achieve installations of longer piles in more difficult ground conditions with better results in sheet pile alignment and verticality. In cases of difficult ground conditions such as hard strata and the presence of obstructions, driving assistance is employed along with a proper selection of driving method and equipment. Jetting and drilling help by loosening or eliminating obstructions by creating pressure right under the tip of the sheet pile being driven. Long and slender PVC sheet piles require steel mandrels as supports when driven in such conditions. Mandrel, which shape is similar to sheet pile profiles, increases the rigidity of Plastic Sheet Pile and supports the weight of the driving equipment such as a vibro-hammer.

What is the proper machine to drive piles in different conditions?

Impact driving is suitable for all soil types but appears to create the highest degree of stress to sheet piles. It is more appropriate to cohesive soils and soft soils such as silts and peats, loose medium to coarse sand, and gravels free of rock inclusions. Drop hammers such as the hydraulic hammer are the common types of impact-driving machinery. Driving using vibratory hammers is ideal for non-cohesive or granular soils such as soft soils and round-grained sand or gravel. It has also shown satisfactory performance in sandy, silty, or softer clay soils. It is less effective in angular-grained materials and soils with a firm consistency. With the introduction of vibration, however, the sub-soil can be further compacted, increasing penetration resistance and ultimately-refusal. If this is the case, driving aids like jetting and drilling might be necessary.

What are the pvc sheet pile selection criteria for soil condition of different hardness?

General rule of the thumb: “the harder the soil, the stronger and stiffer sheet pile section should be used”. Driveability of a pile section is a consequence of its cross-sectional properties (thickness, depth, and width), designed shape, length, grade, and the applied load. Hardness of soil strata characterized by SPT or CPT values is used to predict soil resistance which is essential in the calculation of driving force to be applied. Knowing the range of force from the selected driving machine, corresponding sheet pile sections can be picked according to their yield strength and elastic modulus.

How should I choose a sheet pile section for soils with, say, SPT Value, N=30? Can I still consider using vinyl or shift to steel?

Every sheet pile material has a design purpose, strengths, and areas of improvement. The availability of different materials denotes the need for a special material for a specific application. Plastic or synthetic sheet piles for example are known for being light and corrosion-resistant; Steel sheet piles are recognized for their extraordinary strength and versatility; and so on.

In What Projects Do We Use ESC Vinyl Sheet Piles Made in the USA?

ESC Steel LLC
9 hours ago
4 min read

ESC Vinyl Sheet Piles: Best-Fit Projects Explained

As climate change, urbanization, and aging infrastructure continue to challenge engineers and developers worldwide, the demand for strong, sustainable, and cost‑effective retaining and flood‑control solutions has never been greater. PESC Vinyl Sheet Piles, proudly made in the USA, are engineered to meet these demands across a wide range of hydraulic and civil engineering projects.

Known for their corrosion resistance, long service life, and environmental benefits, ESC Vinyl sheet piles deliver long-term structural reliability where conventional systems degrade. From flood protection and marine works to retaining structures and shallow excavations, ESC Vinyl Sheet Piles provide consistent performance under sustained load and exposure.

Why Choose PESC Vinyl Sheet Piles?

First, ESC Vinyl Sheet Piles are manufactured in the United States under strict quality standards, ensuring consistent performance, material integrity, and sustainability compliance. Unlike steel or timber, vinyl sheet piles do not rust, rot, or leach harmful chemicals into soil or water.

Key advantages include:

Made in the USA with rigorous quality control
Corrosion‑ and chemical‑resistant PVC material
Lightweight for faster installation
Long service life with minimal maintenance
Environmentally friendly and recyclable
Ideal for waterfront, flood, and civil infrastructure projects

These advantages make ESC Vinyl Sheet Piles a preferred solution for engineers, municipalities, and contractors looking for dependable long‑term performance.

Hydraulic Engineering Applications of ESC Vinyl Sheet Piles

ESC Vinyl Sheet Piles are widely used in hydraulic engineering projects, where exposure to water, fluctuating water levels, and aggressive environments demand materials that maintain strength and integrity over time.

Flood Protection and Flood Embankments

One of the most critical applications of ESC Vinyl Sheet Piles is flood protection. Installed as flood walls, levees, and embankments, vinyl sheet piles provide an effective barrier against rising water levels while preventing seepage and soil erosion.

Their corrosion resistance makes them particularly suitable for permanent flood defense systems, helping protect communities, industrial facilities, and critical infrastructure from flood damage.

Interlocking vinyl sheet piles installed along a rural embankment for flood protection and soil stabilization

Water Retention Reservoirs and Weirs

.In water retention reservoirs and weir structures, ESC Vinyl Sheet Piles serve as cut‑off walls and retaining elements that control groundwater flow and stabilize embankments. Their impervious nature helps reduce water loss and improves overall hydraulic efficiency.

Because vinyl does not deteriorate in wet environments, ESC Vinyl Sheet Piles are ideal for long‑term water management structures requiring minimal maintenance.

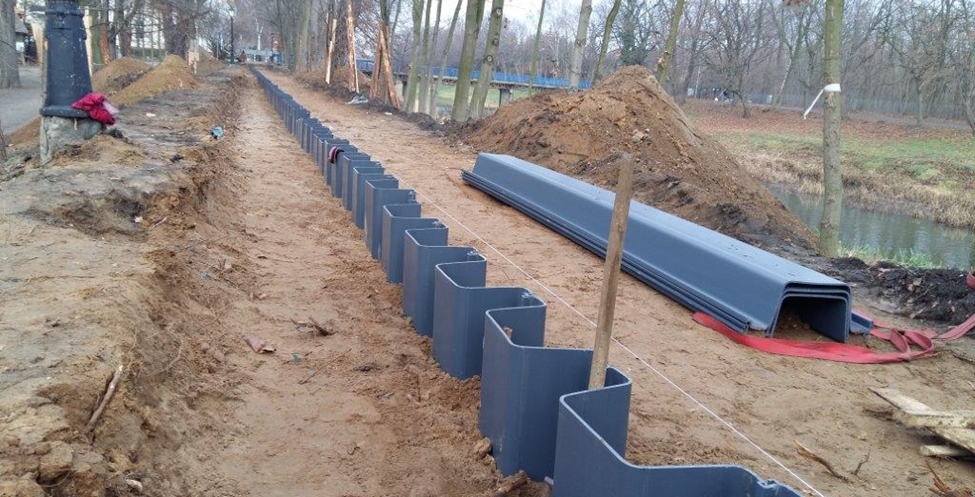

ESC vinyl sheet piles being installed in a trench near a waterway, demonstrating soil retention and erosion control applications

Construction of Small Ports, Marinas, and Harbors

ESC Vinyl Sheet Piles are extensively used in the construction of small ports, marinas, and harbors. They function as quay walls, bulkheads, and shoreline structures that must withstand continuous exposure to saltwater, waves, and tides.

Compared to steel, vinyl sheet piles eliminate concerns about corrosion, making them a cost‑effective and low‑maintenance solution for marine environments, especially in recreational and light‑duty commercial facilities.

Modern residential pond with vinyl sheet pile retaining wall, showcasing erosion control and aesthetic integration of ESC USA‑made piles

Anti‑Erosion Protection for Rivers, Lakes, and Reservoirs

Shoreline erosion poses serious risks to waterways, properties, and ecosystems. ESC Vinyl Sheet Piles are highly effective for anti‑erosion protection along rivers, lakes, and reservoirs by stabilizing banks and preventing soil loss.

Their smooth surface reduces turbulence and scouring, while their environmental compatibility helps preserve aquatic habitats—making them ideal for environmentally sensitive projects.

Pavilion structure supported by vinyl sheet piles over a pond, highlighting ESC USA‑made piles in recreational and architectural water projects.

Cut‑Off Walls to Prevent Environmental Pollution

ESC Vinyl Sheet Piles are widely used as cut‑off walls in the ground to prevent the migration of contaminants. They are commonly installed around landfills, industrial sites, fuel storage areas, and remediation projects.

Industrial warehouse complex with paved access road, representing commercial infrastructure projects where ESC USA‑made vinyl sheet piles

The impermeable vinyl profile acts as a physical barrier, controlling groundwater flow and helping prevent environmental pollution—an increasingly important requirement in modern infrastructure projects.

Landfill site with excavator installing vinyl sheet piles, demonstrating ESC USA‑made piles in environmental engineering projects

Civil Engineering Applications of ESC Vinyl Sheet Piles

Beyond hydraulic engineering, ESC Vinyl Sheet Piles are also a proven solution for a wide range of civil engineering applications, offering both temporary and permanent earth‑retaining solutions.

.Retaining Structures with or Without Anchoring.

ESC Vinyl Sheet Piles are used to construct retaining walls for roads, bridges, residential developments, and commercial sites. Depending on design requirements, these structures can be installed with or without anchoring systems.

Their consistent profile strength and ease of installation make them suitable for soil retention where moderate loads are expected, providing a balanced combination of structural performance and cost efficiency.

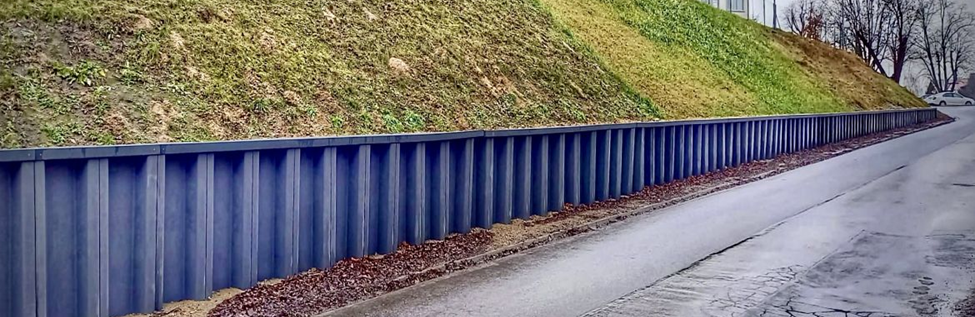

Roadside retaining wall constructed with vertical sheet piles, demonstrating ESC USA‑made vinyl piles

Protection of Shallow Excavations

For shallow excavations, ESC Vinyl Sheet Piles provide effective earth retention while maintaining site safety and stability. They are often used in utility works, drainage installations, culverts, and foundation improvements.

Because vinyl sheet piles are lightweight and easy to handle, installation can be completed quickly with smaller equipment—ideal for projects with limited access or tight construction schedules.

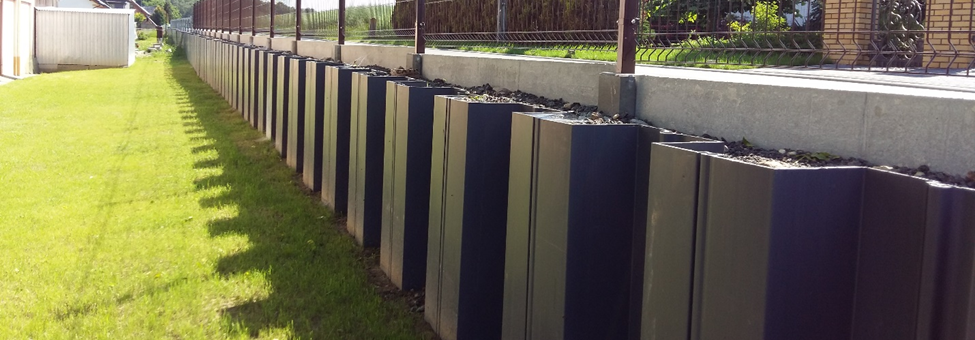

Residential retaining wall with striped vinyl sheet piles and fence, illustrating ESC USA‑made piles

Sustainable and Future‑Ready Infrastructure Solution

As sustainability becomes a priority in construction, ESC Vinyl Sheet Piles stand out for their environmental and lifecycle advantages. They do not corrode, require no chemical treatments, and can be recycled at the end of their service life.

Using ESC Vinyl Sheet Piles reduces long‑term maintenance costs and supports greener infrastructure development—making them a future‑ready solution for engineers and decision‑makers.

Trusted Performance Across Multiple Industries

ESC Vinyl Sheet Piles Made in the USA are trusted across multiple sectors, including:

Flood control and water management
Marine and waterfront development
Environmental protection and remediation
Transportation and civil infrastructure
Residential and commercial construction

Their versatility, durability, and sustainability make them a smart choice for both public and private projects.

Conclusion: Where Performance, Protection, and Sustainability Meet

From flood protection and hydraulic structures to retaining walls and shallow excavations, ESC Vinyl Sheet Piles Made in the USA deliver reliable performance across a wide range of applications. Engineered for durability, designed for sustainability, and supported by American manufacturing excellence, ESC Vinyl Sheet Piles provide long‑term value in today’s most demanding environments.

For engineers, contractors, and project owners seeking a modern alternative to traditional materials, ESC Vinyl Sheet Piles are the proven solution for safe, sustainable, and cost‑effective infrastructure.

Unlock the strength and sustainability of ESC PVC Sheet Piles for your next project. Partner with a trusted global leader in engineered solutions
