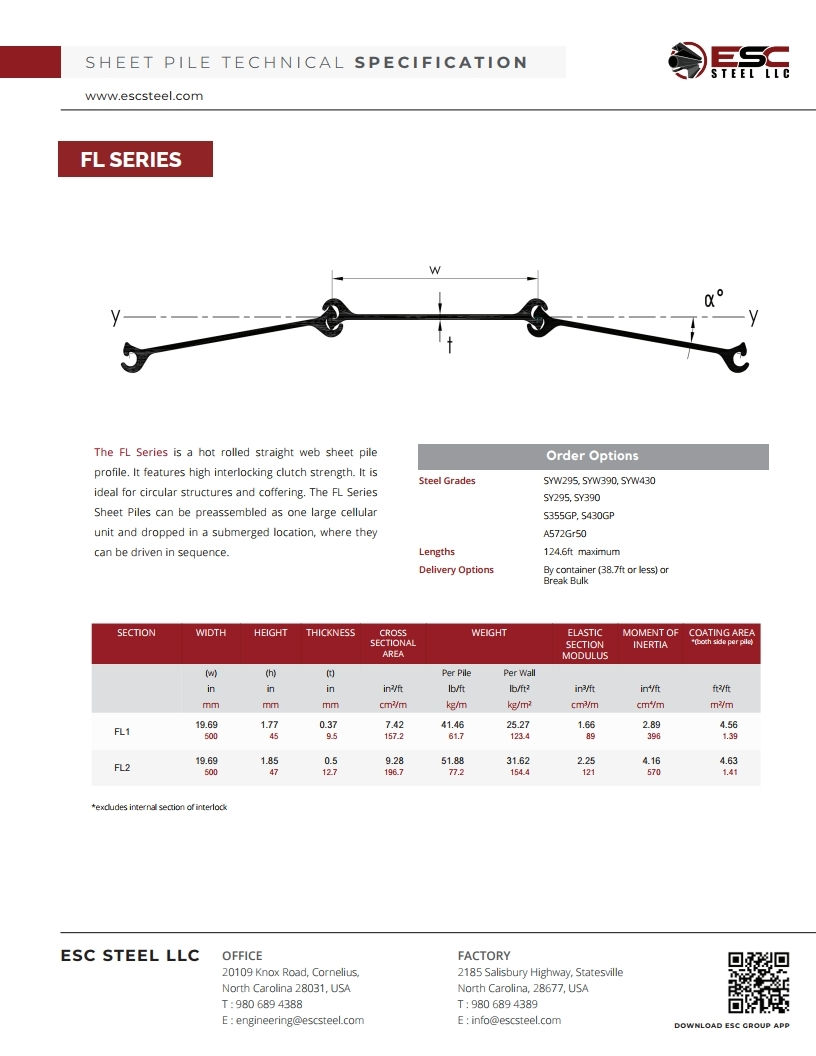

FL SERIES
ROLLED SHEET PILES

The FL series is a hot rolled straight web sheet pile profile. It features high interlocking clutch strength. It is ideal for circular structures and coffering. The FL Series Sheet Piles can be preassembled as one large cellular unit and dropped in a submerged location, where they can be driven in sequence.

TECHNICAL INFORMATION
Section Modulus Range

20.4-93in3/ft

Width Range (single)

​22.8-31.5in

Thickness Range

​0.19-0.62in

Production Standards

​BS EN 10249 Part 1 & 2

​Steel Grades
  • SYW295, SYW390, SYW430

  • SY295, SY390

  • S355GP, S430GP

  • A572Gr50

Length

124.6ft maximum

Delivery Options
  • By container (38.7ft or less) or Break Bulk​

Catalog
Datasheets
Drawings
