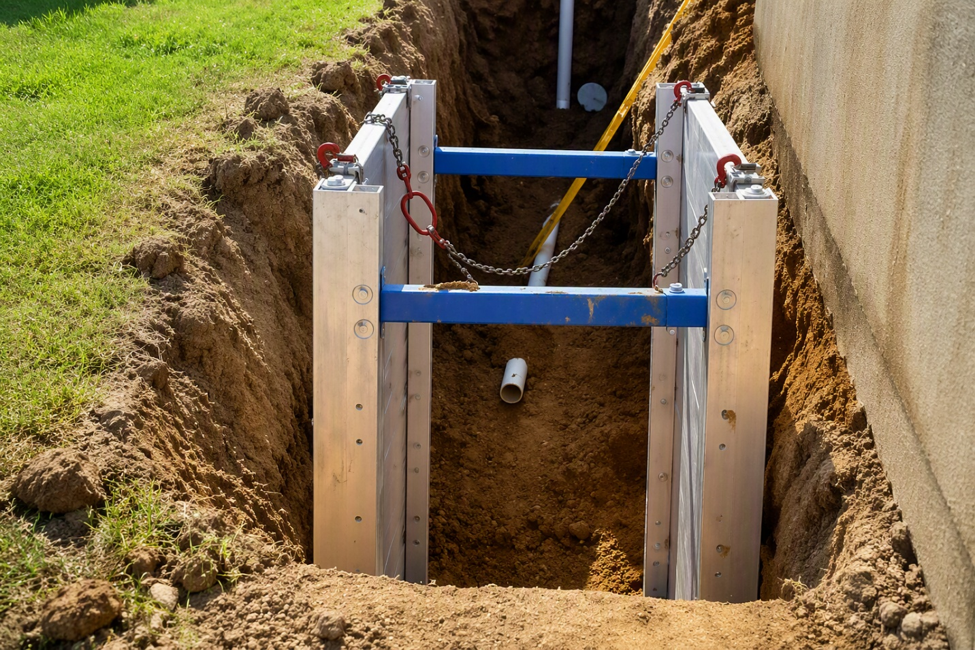

Aluminum modular trench box system installed in an excavation trench for safe underground utility construction and trench protection.

Aluminum Modular Trench Boxes Explained: A Practical Guide for Contractors

If you’ve been working in trenching for a while, you’ve probably noticed that the way jobs are executed today isn’t quite the same as it was even five or ten years ago. Projects move faster, sites are tighter, and there’s less room for inefficiency.

And yet, for a long time, trench protection systems didn’t evolve at the same pace. That’s starting to change.

More contractors are now turning to Aluminum Modular Trench Boxes, not because steel boxes don’t work, but because they’re starting to feel out of step with how jobs unfold in the field.

This shift didn’t happen overnight. It’s been building slowly, driven by real frustrations and real needs on site.

What Are Aluminum Modular Trench Boxes?

Aluminum Modular Trench Boxes are lightweight trench protection systems made from high-strength aluminum components. Unlike traditional fixed trench boxes, modular systems consist of panels, spreaders, and connectors that can be assembled in multiple configurations to suit varying trench widths, depths, and jobsite requirements.

Lightweight aluminum trench shield system with access platform and ladder for utility trenching and excavation safety applications.

When the Job Doesn’t Match the Box

One of the most common challenges in trenching is also one of the simplest: the trench doesn’t always match the box you brought.

Maybe the trench starts narrow and opens later. Maybe you hit an unexpected utility line. Maybe access is tighter than planned and getting a full-size steel box into position becomes a project.

With traditional trench safety systems, those situations usually mean stopping work, adjusting plans, or bringing in different equipment.

The modular aluminum systems now start to feel like a better fit.

Instead of working with a fixed box, you’re working with components—panels, spreaders, connectors—that can be assembled into the configuration you need. And when the trench changes, you adjust the system instead of reworking the job.

It’s a small shift in approach, but it makes a big difference in how smoothly things progress.

The Weight Factor You Feel Immediately

The first time most crews handle aluminum systems, the difference is obvious.

They’re lighter—sometimes significantly so—and that changes how they’re used on site. Components are easier to move into place, adjustments don’t feel like a major operation, and in some cases, you’re not as dependent on large lifting equipment.

That impacts more than just convenience. It affects the rhythm of the job.

Setup becomes quicker, breakdown becomes less of a chore, and crews aren’t dealing with the same level of physical strain throughout the day. Over time, that translates into better productivity without pushing your team harder.

Built for the Realities of Tight Job Sites

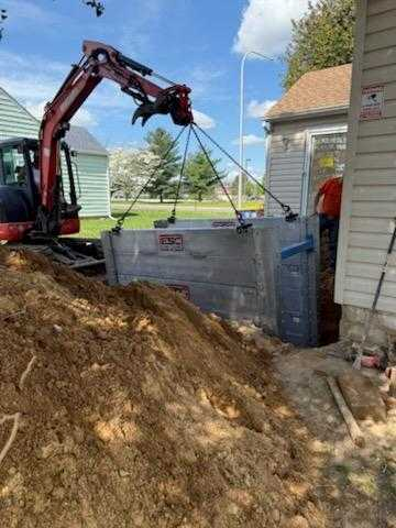

ESC aluminum modular trench box being installed in a residential utility excavation using a compact excavator, providing safe trench protection in a confined jobsite.

A lot of trenching work now happens in places where space is limited. Urban projects, utility repairs, and residential developments don’t always give you the room you’d like to work with.

Large, heavy trench boxes can feel like they were designed for open sites, not confined ones.

Modular trench box systems, on the other hand, are much easier to work into tight spaces. Because they can be assembled in sections and adjusted as needed, they give crews more flexibility in how they approach installation.

Instead of forcing the jobsite to accommodate the equipment, the equipment adapts to the jobsite.

Strength Where It Matters

There’s sometimes hesitation when it comes to lightweight trench boxes , especially in an industry where safety is non-negotiable.

But aluminum modular trench boxes aren’t a compromise. They’re engineered systems designed to handle defined loads and soil conditions, just like heavier alternatives.

In some ways, they offer an advantage. Because they’re built piece by piece, there’s more control in how they’re assembled. Crews can ensure the system fits the trench correctly, rather than working with something that’s slightly off and hoping it holds.

That level of control reduces guesswork, and in trenching, less guesswork is always better.

How Modular Aluminum Trench Boxes Improve Jobsite Productivity

What’s interesting is that this isn’t a trend driven by marketing—it’s coming from the field.

Contractors who switch tend to stick with it. Not because it’s dramatically different, but because it removes a lot of the small inefficiencies that slow jobs down.

It’s a quieter kind of improvement, but a meaningful one.

Take a closer look at how these systems perform from planning through execution:

Flexible Planning – Modular systems allow teams to plan with built-in flexibility, making it easier to adjust trench widths, depths, and configurations as project needs change.
Simplified Installation – Instead of depending on heavy equipment for one large trench box, modular systems can be assembled in stages, giving crews more control and improving setup efficiency.
Adaptable to Changing Conditions – Since trench conditions often shift unexpectedly, modular aluminum systems make it easy to adjust width, height, and configuration without restarting the setup.
Reduced Downtime – Modular systems minimize work interruptions by allowing faster adjustments, reducing delays caused by equipment repositioning or reworking trench box setups.
Improved Safety and Efficiency – Easier handling and adaptability help crews achieve a more accurate trench fit, creating a safer work environment while maintaining productivity.

Choosing the Right Trench Safety Partner

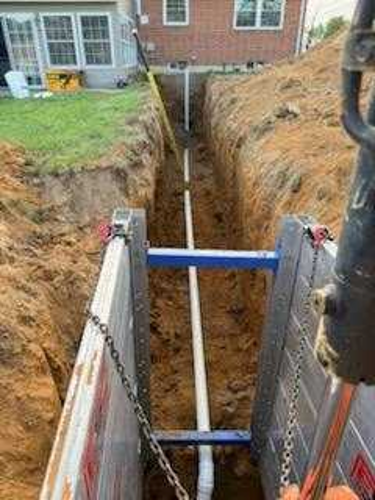

Aluminum modular trench box system protecting a deep utility trench during underground pipe installation on a residential infrastructure project.

Over the course of multiple projects, the value of aluminum modular trench box systems becomes increasingly apparent. Contractors involved in utility construction, municipal infrastructure, and underground utility installation across North America have embraced these systems for their flexibility, efficiency, and ease of use.

Faster setup times, reduced equipment requirements, and fewer work interruptions can contribute to meaningful cost savings over time. While the impact may not be dramatic on a single project, the long-term operational benefits are difficult to ignore.

More importantly, crews develop a smoother and more efficient workflow. Once teams become accustomed to the adaptability of modular systems, returning to less flexible trench protection methods can be challenging.

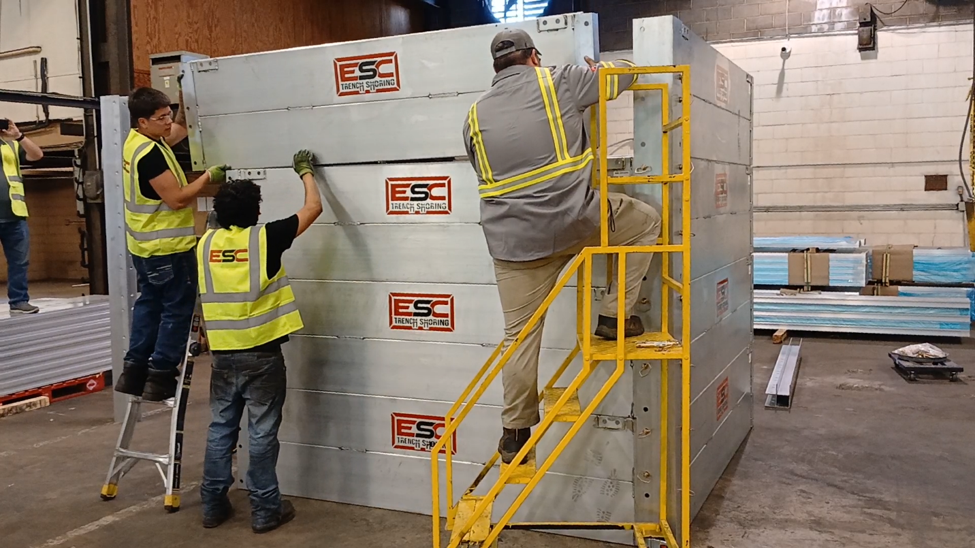

Workers assembling an ESC aluminum modular trench box system with integrated access stairs, demonstrating modular trench safety solutions for excavation projects.

However, even the best equipment performs at its best when supported by the right expertise. Working with a supplier that understands modular trench safety systems can make a significant difference. Guidance on system configuration, site requirements, and best practices helps ensure optimal performance, safety, and productivity.

At ESC Trench Shoring, we support contractors with more than just equipment. We provide practical trench safety solutions backed by industry expertise, helping crews work more efficiently and confidently in the field.
