Application of Steel Pipes in Marine Construction

ESC Steel LLC
Oct 22, 2021
4 min read

Updated: Jun 22

Steel pipes are basically used in marine construction due to constructability reasons. Aside from its capability to be driven with ease to create deep foundations, it is also durable and has high inertia that counters high pressure and heavy loads from different directions. Other than pipe piles, steel pipes such as structural components are fabricated off-site, making them easier to install to form modules or sea-borne structures. Other steel pipes are also common and best suited for oilfields and shipbuilding.

However, exposure to a highly corrosive environment has long been a challenge in using steel pipes in marine applications. To minimize the impact of corrosion, marine-grade steel pipes are preferred, such as stainless steel, duplex steel, coated carbon pipes, and hot-galvanized steel pipes. The specific type of steel pipe to be used is, of course, determined by the needs of the project or what is specified in the project design documents. Steel pipes are mostly used to construct the foundation for bridges and other marine structures. Other specific usages are described below.

Bridge Construction

Steel pipes have higher load-bearing capacity and toughness compared to most construction materials. This makes it very suitable for the construction of bridges, especially those with longer spans. In most cases, steel pipes are used to construct foundations. Steel pipes can be driven piles that serve as the foundation itself or as encasement or caisson that facilitates pouring of concrete, especially underwater. As a hollow section with strong walls, it is easy to drive steel pipes into layers of weak soil or into rock formations to achieve the desired integrity of foundation works.

Dock Construction

Just like in bridges, steel pipes can be driven deep into the ground in order to provide adequate support for docks, as a part of the foundation, or to aid concrete pouring. Mostly steel pipe pilings with anti-corrosive coating are used for building docks. This is because they don’t just provide considerable load bearing capacity, but they also offer corrosion resistance, enabling the dock to maintain its structural integrity and serve its designed life span.

Combi-wall Construction

A combi-wall is a combination of large-diameter steel pipes and sheet piles. It mostly serves as a retaining wall. Unlike secant or sheet pile walls, combi-walls provide more strength and durability, especially against heavy lateral pressure. The steel pipes make up most of the wall’s structure. The pipes provide resistance to overturning forces, whereas the sheet piles serve as infill between the pipes. Some of the construction projects where combi-walls are employed include port expansion, quay wall and jetty construction, pier construction, lake filling, and other retaining wall structure construction.

Trestle Construction

Trestle mostly serves as a support structure during bridge construction. It is often a temporary structure. Where a trestle is intended to serve as a foundation, steel pipes are driven into the soil or seabed to create a strong foundation. To stay in place, the pipes are normally strengthened by reinforced concrete.

Berthing/Mooring Structure Construction

The so-called dolphin is a cluster of pipe piles driven through the seabed, forming a tripod that extends above the water surface, working as an independent mooring point or as a structure aligned with jetties to provide a wider berthing surface. They are also used as structures to hold navigation aids and beacon lights. Coated carbon steel pipes are commonly utilized as dolphin piles due to corrosion-resistance requirements.

Offshore Structures

Steel pipes are widely used in offshore structures such as helipads, storage and offloading system platforms, oil rig & accommodation platforms, wind mills, and others. From driven piles to the smallest structural members, corrosion-resistant steel pipes are favourably useful in these applications because of their dynamic characteristics that have a positive response to harsh environmental activities such as strong winds, tidal waves, and strong currents.

There are two types of pipes used in offshore structures: metal and non-metal. Among the metal pipes are copper-nickel alloy, stainless, hot-galvanadium-galvanized, & carbon steel pipes. Non-metal pipes are FRP and plastic composites.

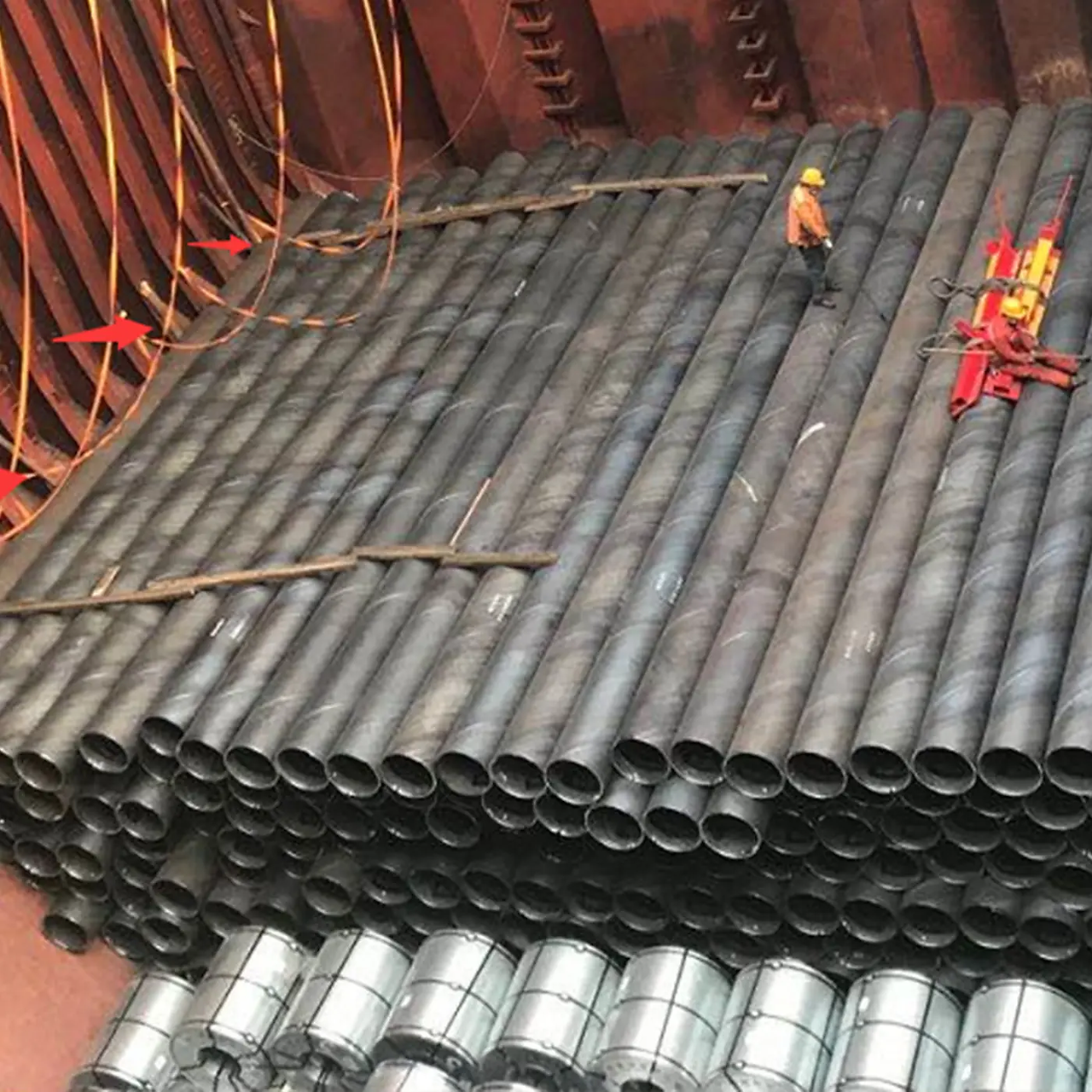

Listed below is some information about different types of steel pipes:

Copper-nickel alloy pipe has good seawater corrosion resistance, good hydraulic performance, good resistance to the growth of sea life, and long service life. However, copper-nickel alloy pipes are expensive and have poor mechanical strength.
Stainless steel pipe has good corrosion resistance and mechanical properties, but is prone to pitting corrosion, which is easy to occur in seawater medium caused by sulfur.
Carbon steel pipes are often inexpensive. They hold high ductility, strength, and workability, and they are safe and durable. Where the water is salty, they are likely to suffer from corrosion. Engineering measures such as epoxy coating and hot-dip galvanizing can solve the problem of carbon steel pipes in seawater, but require a regular and effective maintenance program.
Hot-galvanized steel pipes are coated with zinc to prevent them from rusting.
Duplex stainless steel pipes have a two-phase microstructure consisting of grains of ferritic and austenitic stainless steel, hence the name duplex. Unlike traditional stainless steel pipes, they are able to prevent pitting corrosion from sulphur in sea water.

SETTLE AND DISCUSS WITH ESC’S PROFESSIONAL

Choosing the right pipe material for a marine application is crucial. Corrosion due to seawater exposure is a major concern that has to be taken care of during material shortlisting. It is important to weigh the advantages and disadvantages of different types of steel pipes in terms of performance and economic feasibility.

ESC produces a wide range of steel pipes of up to 4,267mm in diameter and 100mm in thickness by LSAW, SSAW, and ERW manufacturing processes. We are also a global provider of corrosion protection solutions that include: Coal Tar Epoxy Coating, Glass Flake Epoxy Coating, Hot Dip Galvanizing, Cathodic Protection, and Duplex Coating System.
